Pipeline transportation occurrences in 2019

Table of contents

This document covers federally regulated pipelines only. Any non-federally regulated pipeline data reported to the Transportation Safety Board of Canada (TSB) are not included in this report.

The TSB gathers and uses these data during the course of its investigations to analyze safety deficiencies and identify risks in the Canadian pipeline transportation system.

It should be noted that certain characteristics of the data constrain statistical analysis and identification of emerging trends. These include the small totals of accidents and incidents, the large variability in the data from year to year, and changes to regulations and definitions over time. The reader is cautioned to keep these limitations in mind when viewing this summary to avoid drawing conclusions that cannot be supported by statistical analysis.

The 2019 data were collected according to the reporting requirements described in the TSB Regulations in force during that calendar year.Footnote 1

The statistics presented here reflect the TSB Pipeline Occurrence Database System (PODS) at 19 February 2020. Since the occurrence data are constantly being updated in the live database as additional information becomes available, the statistics may change slightly over time.

Also, as many occurrences are not formally investigated, information regarding some of the reported occurrences recorded in the database may not have been verified by the TSB.

The pipeline system

In 2019, in the federally-regulated pipeline system, 40 companies transported 240 million cubic metresFootnote 2 of oil through approximately 18 200 km of oil pipelines (including 19 companies that transported both oil and gas). Also in 2019, 83 companies transported over 180 billion cubic metres of gas through approximately 51 600 km of gas pipelines (including 19 companies that transported both oil and gas). A further 1115 km of pipelines carried other commodities and substances. Altogether, this represents approximately 18.9 exajoules (EJ) of energy content transported.Footnote 3

Pipeline transportation occurrences

In 2019, there were 48 pipeline transportation occurrences reported to the TSB (Table 1 and Figure 1), none of which were accidents. This number is below the average number of occurrences for the previous 10 years; fluctuations to the reported numbers over this period may result from various factors, including changes to regulations and definitions. On average, from 2009 to 2018, 132 occurrences were reported each year (126 incidents and 6 accidents per year).

There were no accidents, serious injuries, or fatalities arising directly from the operation of any federally-regulated pipeline in 2019. Indeed, there have been no fatal accidents on a federally regulated pipeline system directly resulting from the operation of a pipeline since the inception of the TSB in 1990.

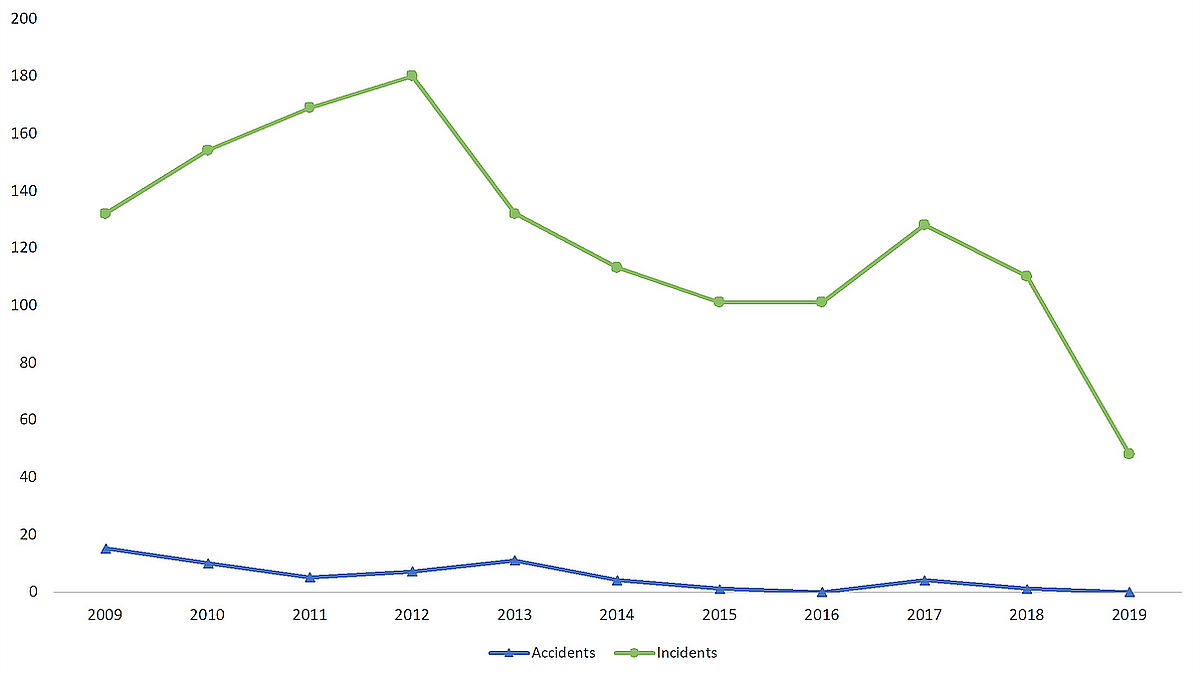

Figure 1. Pipeline accidents and incidents reported to the TSB (according to reporting requirements in effect at the time), 2009 to 2019
Pipeline accidents and incidents reported to  the TSB (according to reporting requirements in effect at the time), 2009 to 2019
Figure 1. Data table
Pipeline accidents and incidents reported to the TSB (according to reporting requirements in effect at the time), 2009 to 2019
Year Number of accidents Number of incidents
2009 15 117
2010 10 144
2011 5 164
2012 7 173
2013 11 121
2014 4 109
2015 1 100
2016 0 101
2017 4 124
2018 1 109
2019 0 48

Release of product

Of 48 occurrences in 2019, 20 involved a release of product (Table 5), far lower than the average of 96 per year over the previous 10 years. The products released in the 20 incidents were as follows: 16 hydrocarbon gas (15 were sweet natural gas and 1 was sour or acid gas) and 4 low vapour pressure (LVP) hydrocarbons. It is worth noting that 28 occurrences in 2019 did not involve a release of product, slightly below the average number of occurrences without release over the past 10 years (36).

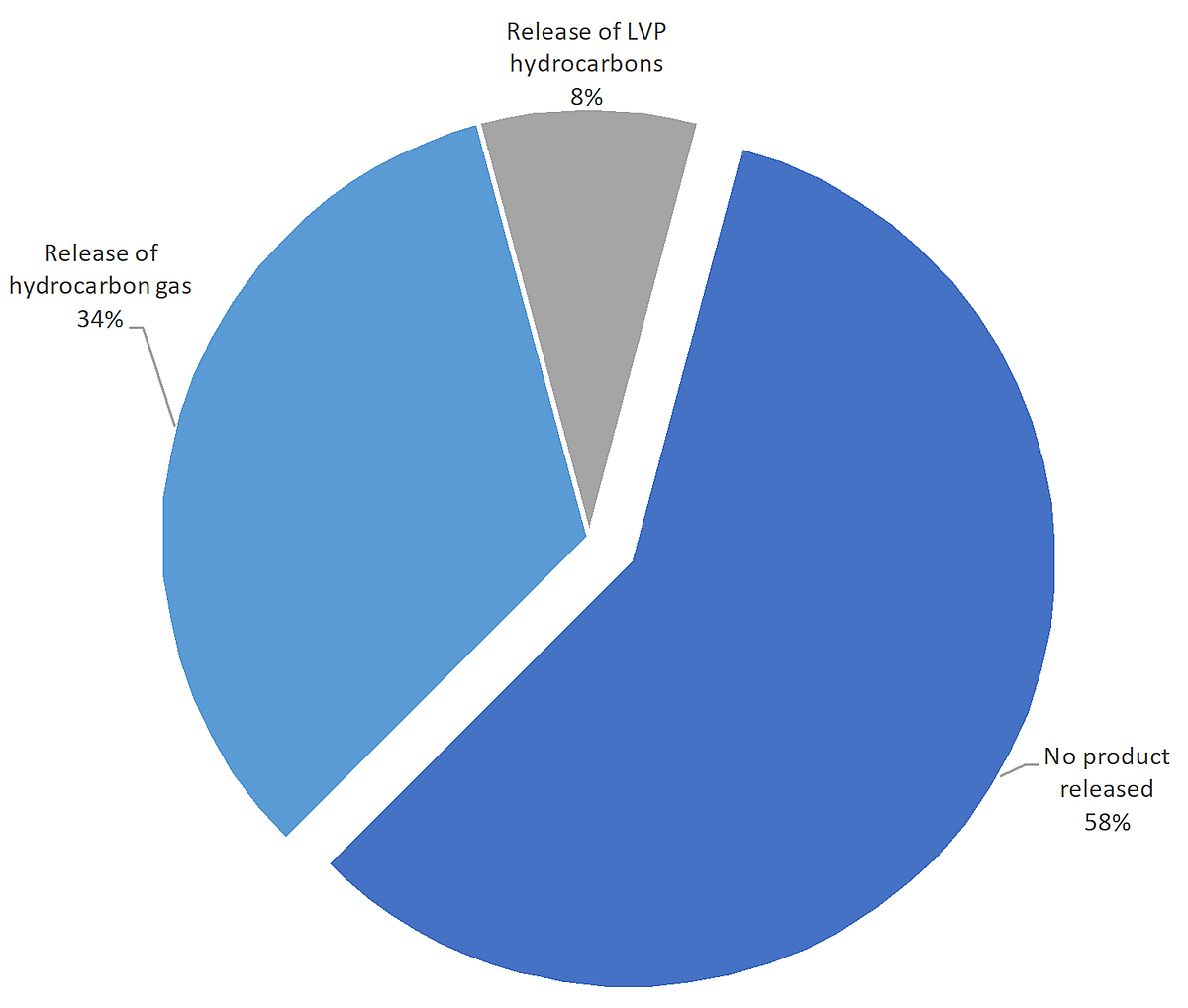

Figure 2. Percentages of occurrences with and without release of product, by type of product released, 2019
Percentages of occurrences with and without release of product, by type of product released, 2019
Figure 2. Data table
Occurrences with and without release of product, by type of product released, 2019
Product released Number of occurrences
Total occurrences 48
Release of hydrocarbon gas 16
Release of HVP hydrocarbons 0
Release of LVP hydrocarbons 4
Release of other product 0
No product released 28

Event type

In 2019, 13 incidents (27% of 48 total incidents) involved “geotechnical, hydrotechnical or environmental activity,” for example, slope movements or river erosion that exposed a length of pipe (Table 1). This was a significant decrease from 44 reports of this type in 2018 but still above the average of 7 such events per year over the previous 10 years. These fluctuations might be related to variations in enforcement and company inspection and reporting practices, as well as changes to weather patterns. Only 5 of 48 incidents involved “operation of the pipeline beyond limits,” well below the average of 14.5 incidents of this type over the previous 10 years. There were 7 reports of pipelines being contacted by an object in 2019, compared with the average of 5 reports per year during the previous 10 years. “Release from line pipe body” was noted in only 1 occurrence in 2019, compared with 7 such occurrences the previous year and the average of 5 per year during the previous 10 years—indeed, this was the lowest figure for this event type in at least 10 years of data.

Geography

The largest number of occurrences in 2019 (19 out of 48) took place in Alberta (Table 2). British Columbia had 12 occurrences, Ontario had 6, and Quebec had 4. The Northwest Territories saw pipeline occurrences (3) for the first time since 2016; Manitoba and Saskatchewan also had occurrences (2 each).

Facilities

In the 10-year period 2009–2018, there were 850 occurrences (67%) at facilities and 412 (33%) at locations along pipeline (Table 3). However, in 2019 more than half (60%) of the occurrences (29 of 48) occurred at locations along pipeline. This is due in part to the number of reports of geotechnical, hydrotechnical, or other environmental activity that affected sections of pipeline during the year. Of the 19 incidents at facilities in 2019, 6 occurred at compressor stations, 3 were at gas processing plants, 3 at meter stations, 3 at pump stations, 3 at terminals, and 1 at another facility.

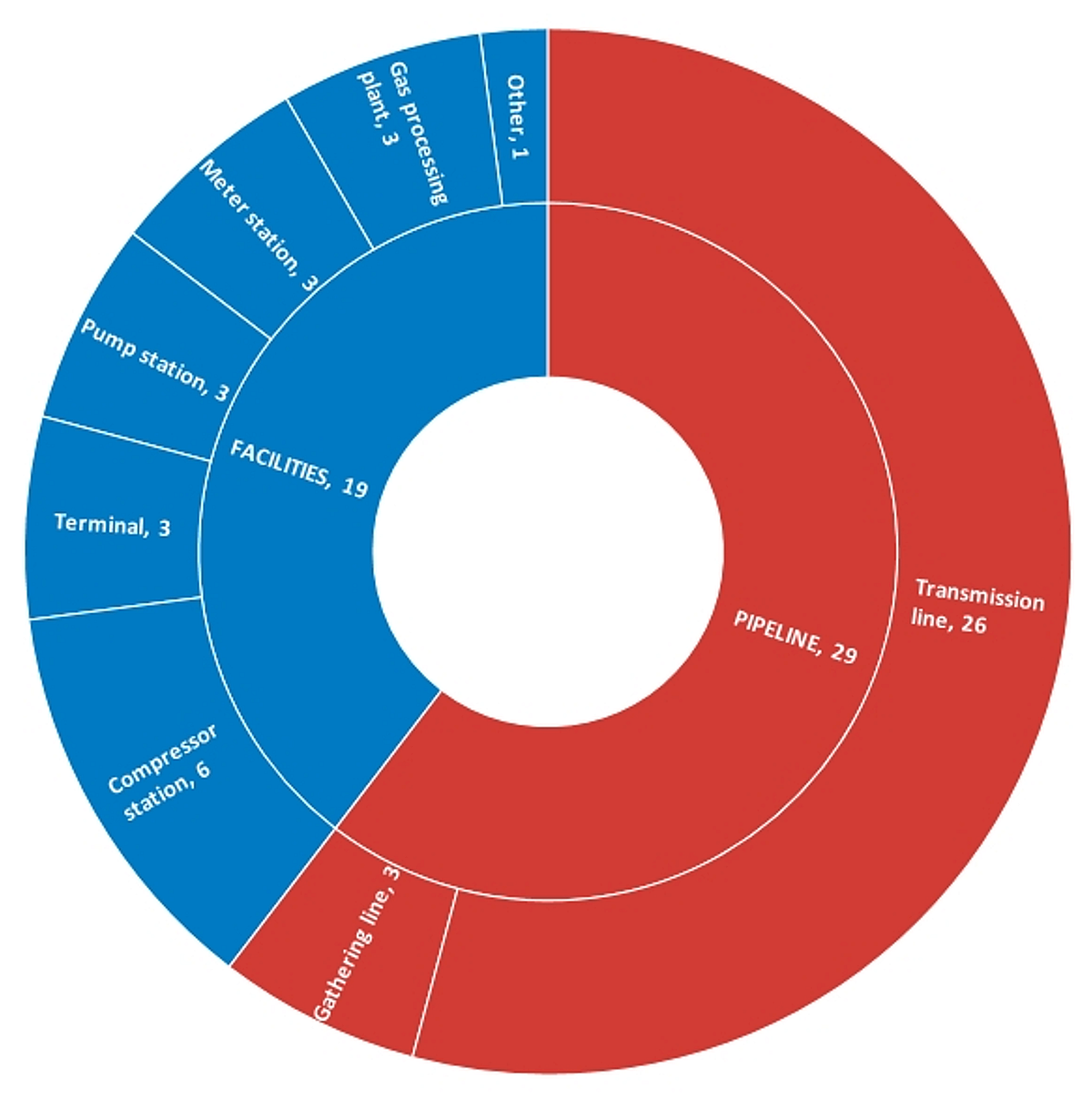

Figure 3. Location of occurrences in 2019
Location of occurrences in 2019
Figure 3. Data table
Location of occurrences in 2019
Facility or pipeline  Facility type or pipeline type Number of occurrences
Facilities, 19 Compressor station 6
Gas processing plant 3
Meter station 3
Pump station 3
Storage facility 0
Terminal 3
Receipt / Delivery facility 0
Other 1
Pipeline, 29 Gathering line 3
Transmission line 26

Pipeline occurrence rate

An occurrence rate of 0.7 occurrences per 1000 km of operating pipeline was calculated for 2019 based on the 48 occurrences reported and the 70 860 km of federally regulated pipelines that were operational in Canada according to the Canada Energy Regulator (CER) during the same year (Table 4 and Figure 4). This occurrence rate is down from 1.6 in 2018, and below the average of 1.8 in the period 2011 to 2018.

An occurrence rate can also be calculated using EJ of energy as a denominator (Table 4 and Figure 4). In 2019, the equivalent of 18.9 EJ of energy was transported in federally regulated pipelines. This translates to a rate of 2.5 occurrences per EJ in 2019, a figure which is less than half the 2018 rate of 6.3, and scarcely one-quarter of the 2009–2018 average of 9.0 occurrences per EJ.

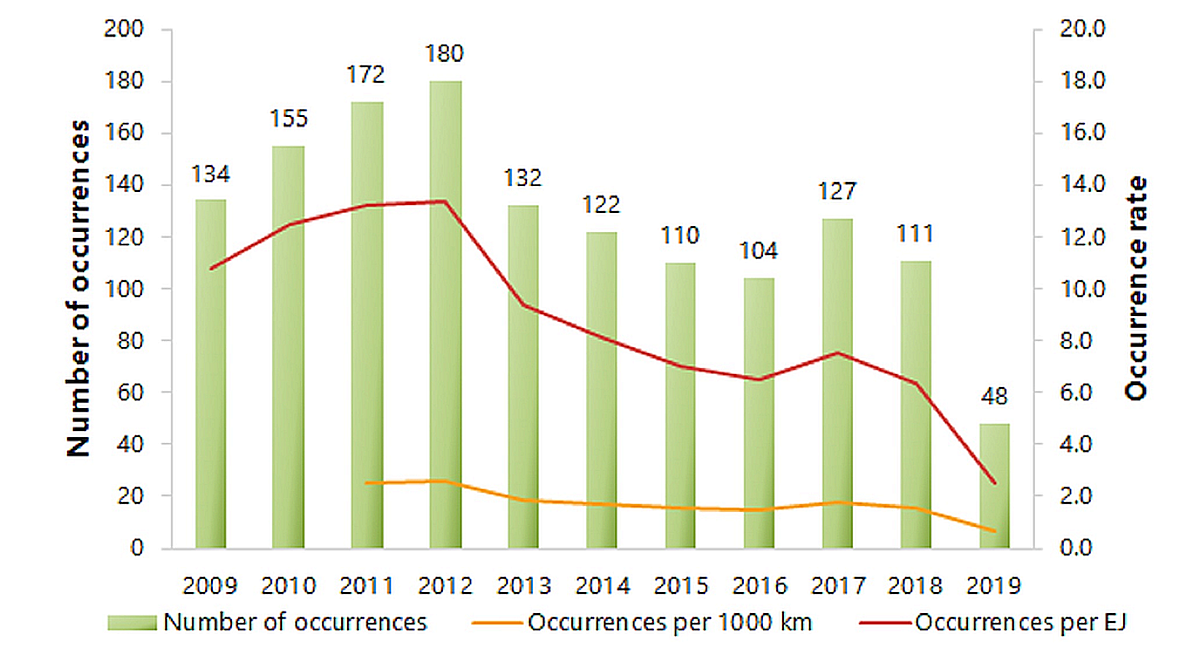

Figure 4. TSB reportable occurrences (according to reporting requirements in effect at the time) and occurrence rates, 2009 to 2019
TSB reportable occurrences (according to reporting requirements in effect at the time) and occurrence rates, 2009 to 2019
Figure 4. Data table
Location of occurrences, 2018
Year Number of occurrences Occurrences per 1000 km Occurrences per EJ
2009 134   10.8
2010 155   12.5
2011 172 2.5 13.2
2012 180 2.6 13.4
2013 132 1.9 9.4
2014 122 1.7 8.1
2015 110 1.6 7.0
2016 104 1.5 6.5
2017 127 1.8 7.5
2018 111 1.6 6.4
2019 48 0.7 2.5

Data tables

Table 1. Pipeline occurrences by event type, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Total number of occurrences 132 154 169 180 132 113 101 101 128 110 48
Total number of occurrences with product release 104 135 149 156 107 94 60 41 75 41 20
Total number of fatalities 0 0 0 0 0 0 0 0 0 0 0
Total number of serious injuries 1 0 0 2 0 0 0 0 1 0 0
Accidents 15 10 5 7 11 4 1 0 4 1 0
Product released 10 7 4 3 7 2 1 0 4 1 0
Release of hydrocarbon gas 6 3 2 3 5 2 1 0 0 1 0
Release of HVP hydrocarbons1 0 0 0 0 0 0 0 0 1 0 0
Release of LVP hydrocarbons2, 3 2 3 2 0 2 0 0 0 2 0 0
Release of other product 2 1 0 0 0 0 0 0 1 0 0
Release from line pipe body 6 0 2 1 2 2 1 0 1 1 0
Fire 11 6 3 6 8 3 0 0 0 1 0
Explosion 2 0 1 1 1 1 0 0 0 1 0
Rupture 4 0 1 1 2 2 1 0 1 1 0
Pipeline contacted by an object 1 1 1 1 1 0 0 0 2 0 0
Operation beyond limits 0 0 0 0 0 0 0 0 0 0 0
Geotechnical/
Hydrotechnical/
Environmental activity
0 0 0 0 0 0 0 0 0 0 0
Incidents 117 144 164 173 121 109 100 101 124 109 48
Product released 94 128 145 153 100 92 59 41 71 40 20
Release of hydrocarbon gas 42 56 59 67 47 31 30 35 47 35 16
Release of HVP hydrocarbons1 1 2 5 2 5 7 8 4 10 1 0
Release of LVP hydrocarbons2, 3 35 61 72 78 35 36 4 1 3 4 4
Release of other product 16 9 9 6 13 18 17 1 11 0 0
Release from line pipe body 3 5 8 2 8 3 5 5 2 7 1
Fire 0 2 10 6 1 3 5 5 8 4 3
Explosion 1 1 0 0 0 0 1 0 1 1 0
Pipeline contacted by an object 10 2 1 4 3 6 7 8 4 8 7
Operation beyond limits 5 13 5 6 15 7 27 34 20 13 5
Geotechnical/
Hydrotechnical/
Environmental activity
2 0 0 1 2 1 0 3 18 44 13
Unauthorized third-party activity affects pipeline structural integrity 2 0 0 0 0 0 4 4 0 0 0

Data extracted 19 February 2020

Notes:

  1. HVP means high vapour pressure as defined in Canadian Standards Association Standard Z662.
  2. LVP means low vapour pressure as defined in Canadian Standards Association Standard Z662.
  3. As of July 2014, the minimum reporting threshold for releases of low vapour pressure hydrocarbons was established at 1.5 m³
Table 2. Pipeline occurrences by province or territory, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Accidents 15 10 5 7 11 4 1 0 4 1 0
Newfoundland and Labrador 0 0 0 0 0 0 0 0 0 0 0
Prince Edward Island 0 0 0 0 0 0 0 0 0 0 0
Nova Scotia 0 0 0 0 0 0 0 0 0 0 0
New Brunswick 0 0 0 0 0 0 0 0 0 0 0
Quebec 0 0 0 0 0 0 0 0 0 0 0
Ontario 5 1 2 2 2 0 0 0 0 0 0
Manitoba 0 1 0 0 0 1 0 0 0 0 0
Saskatchewan 2 1 1 1 1 0 0 0 1 0 0
Alberta 4 4 1 2 6 1 1 0 2 0 0
British Columbia 4 3 0 2 2 1 0 0 1 1 0
Yukon 0 0 0 0 0 0 0 0 0 0 0
Northwest Territories 0 0 1 0 0 1 0 0 0 0 0
Nunavut 0 0 0 0 0 0 0 0 0 0 0
Incidents 117 144 164 173 121 109 100 101 124 109 48
Newfoundland and Labrador 0 0 0 0 0 0 0 0 0 0 0
Prince Edward Island 0 0 0 0 0 0 0 0 0 0 0
Nova Scotia 0 1 4 2 3 1 2 3 0 2 0
New Brunswick 4 6 13 19 16 9 3 5 4 2 0
Quebec 4 2 2 1 3 1 8 7 4 1 4
Ontario 21 20 22 22 11 14 14 18 15 19 6
Manitoba 9 14 11 10 12 8 9 2 3 3 2
Saskatchewan 13 38 35 45 18 17 5 6 11 4 2
Alberta 35 49 54 45 35 32 27 37 36 31 19
British Columbia 26 13 11 18 17 27 30 22 51 47 12
Yukon 0 0 0 0 0 0 0 0 0 0 0
Northwest Territories 5 1 12 11 6 0 2 1 0 0 3
Nunavut 0 0 0 0 0 0 0 0 0 0 0
Total Occurrences 132 154 169 180 132 113 101 101 128 110 48

Data extracted 19 February 2020

Table 3. Pipeline occurrences by facility type or pipeline type, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Accidents 15 10 5 7 11 4 1 0 4 1 0
Facilities 8 9 3 6 8 1 0 0 2 0 0
Compressor station 3 5 0 3 4 1 0 0 0 0 0
Gas processing plant 3 0 0 0 2 0 0 0 1 0 0
Meter station 1 1 2 1 0 0 0 0 0 0 0
Pump station 1 1 0 2 1 0 0 0 0 0 0
Storage facility 0 0 0 0 0 0 0 0 0 0 0
Terminal 0 2 1 0 1 0 0 0 1 0 0
Receipt / Delivery facility 0 0 0 0 0 0 0 0 0 0 0
Other 0 0 0 0 0 0 0 0 0 0 0
Pipeline 7 1 2 1 3 3 1 0 2 1 0
Gathering line 1 1 0 1 0 0 0 0 0 0 0
Transmission line 6 0 2 0 3 3 1 0 2 1 0
Incidents 117 144 164 173 121 109 100 101 124 109 48
Facilities 91 104 126 132 86 88 67 48 67 41 19
Compressor station 32 26 22 31 15 14 11 12 23 18 6
Gas processing plant 8 5 3 6 11 21 21 3 20 7 3
Meter station 12 19 18 17 19 9 7 16 7 6 3
Pump station 26 30 48 37 19 22 17 9 10 4 3
Storage facility 0 0 1 1 0 0 0 0 1 0 0
Terminal 13 21 27 35 19 18 10 5 6 6 3
Receipt / Delivery facility 0 1 1 0 1 1 0 0 0 0 0
Other 0 2 6 5 2 3 1 3 0 0 1
Pipeline 26 40 38 41 35 21 33 53 57 68 29
Gathering line 9 7 7 8 2 2 5 3 8 11 3
Transmission line 17 33 31 33 33 19 28 50 49 57 26
Total Occurrences 132 154 169 180 132 113 101 101 128 110 48

Data extracted 19 February 2020

Table 4. Pipeline occurrence rates, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Accidents 15 10 5 7 11 4 1 0 4 1 0
Incidents 117 144 164 173 121 109 100 101 124 109 48
Total number of occurrences 132 154 169 180 132 113 101 101 128 110 48
Total length of operating pipelines1 (x1000 km)     68.7 69.7 70.8 70.7 70.8 71.0 70.7 70.6 70.9
Accidents per 1000 km of operating pipelines     0.1 0.1 0.2 0.1 0.0 0.0 0.1 0.0 0.0
Incidents per 1000 km of operating pipelines     2.4 2.5 1.7 1.5 1.4 1.4 1.8 1.5 0.7
Occurrences per 1000 km of operating pipelines     2.5 2.6 1.9 1.6 1.4 1.4 1.8 1.6 0.7
Total exajoules of energy transported1 (EJ) 12.4 12.4 13.1 13.4 14.0 15.0 15.6 16.1 16.9 17.4 18.9
Accidents per EJ 7.5 3.3 2.5 0.5 0.8 0.3 0.1 0.0 0.2 0.1 0.0
Incidents per EJ 58.5 48.0 82.0 12.9 8.6 7.3 6.4 6.3 7.3 6.3 2.5
Occurrences per EJ 66.0 51.3 84.5 13.4 9.4 7.5 6.5 6.3 7.6 6.3 2.5

Data extracted 19 February 2020

Notes:

  1. Source: Canadian Energy Regulator (CER)
Table 5. Pipeline occurrences with product release by type of product, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Hydrocarbon gas 48 59 61 70 52 33 31 35 47 36 16
Gas - sour or acid 8 2 3 5 3 3 10 2 7 6 1
Natural gas 40 57 58 65 49 30 21 33 40 30 15
HVP hydrocarbons 1 2 5 2 5 7 8 4 11 1 0
Natural gas liquids / Liquefied petroleum gas 1 2 5 2 5 7 8 4 11 1 0
LVP hydrocarbons1 37 64 74 78 37 36 4 1 5 4 4
Condensate 1 2 0 0 3 4 0 0 1 0 0
Condensate - sour 0 0 0 0 0 0 0 0 0 0 0
Crude oil 33 58 74 77 33 32 3 1 4 3 4
Crude oil - sour 0 0 0 0 1 0 1 0 0 0 0
Refined products 3 4 0 1 0 0 0 0 0 1 0
Other products2 18 10 9 6 13 18 17 1 12 0 0
Other - unspecified 17 10 9 6 13 18 16 1 0 0 0
Other - gas 0 0 0 0 0 0 1 0 1 0 0
Other - liquid 1 0 0 0 0 0 0 0 11 0 0
Total Occurrences 104 135 149 156 107 94 60 41 75 41 20

Data extracted 19 February 2020

Notes:

  1. As of July 2014, the minimum reporting threshold for releases of low vapour pressure hydrocarbons was established at 1.5 m³.
  2. As of January 2017, "other products" are specified to be either liquid or gas.
Table 6. Pipeline occurrences with product release by quantity released, 2009-2019
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Hydrocarbon gas 48 59 61 70 52 33 31 35 47 36 16
100 m³ or less 45 59 54 69 48 26 20 24 20 15 10
101 to 30,000 m³ 0 0 5 0 3 5 7 10 25 17 4
30,001 to 100,000 m³ 1 0 0 0 0 0 3 1 1 1 1
100,001 to 1,000,000 m³ 0 0 1 1 0 1 0 0 1 2 1
1,000,001 to 10,000,000 m³ 2 0 1 0 0 1 1 0 0 1 0
Greater than 10,000,000 m³ 0 0 0 0 1 0 0 0 0 0 0
HVP hydrocarbons 1 2 5 2 5 7 8 4 11 1 0
8 m³ or less 1 2 4 2 5 7 8 4 10 1 0
9 to 25 m³ 0 0 0 0 0 0 0 0 1 0 0
26 to 100 m³ 0 0 1 0 0 0 0 0 0 0 0
101 to 1000 m³ 0 0 0 0 0 0 0 0 0 0 0
1001 to 10,000 m³ 0 0 0 0 0 0 0 0 0 0 0
Greater than 10,000 m³ 0 0 0 0 0 0 0 0 0 0 0
LVP hydrocarbons1 37 64 74 78 37 36 4 1 5 4 4
1.5 m³ or less 30 60 67 76 34 29 0 0 0 2 0
1.6 to 8 m³ 5 0 6 1 2 4 2 1 1 2 3
9 to 25 m³ 0 2 0 0 1 2 1 0 2 0 1
26 to 100 m³ 0 1 0 1 0 0 1 0 1 0 0
101 to 1000 m³ 2 1 1 0 0 1 0 0 0 0 0
1001 to 10,000 m³ 0 0 0 0 0 0 0 0 1 0 0
Greater than 10,000 m³ 0 0 0 0 0 0 0 0 0 0 0
Other products 18 10 9 6 13 18 17 1 12 0 0
8 m³ or less 18 9 9 6 13 15 14 0 12 0 0
9 to 25 m³ 0 0 0 0 0 2 2 0 0 0 0
26 to 100 m³ 0 1 0 0 0 1 0 0 0 0 0
101 to 1000 m³ 0 0 0 0 0 0 1 1 0 0 0
1001 to 10,000 m³ 0 0 0 0 0 0 0 0 0 0 0
Greater than 10,000 m³ 0 0 0 0 0 0 0 0 0 0 0
Total Occurrences 104 135 149 156 107 94 60 41 75 41 20

Data extracted 19 February 2020

Notes:

  1. As of July 2014, the minimum reporting threshold for releases of low vapour pressure hydrocarbons was established at 1.5 m³.
Table 7. Pipeline occurrences by province or territory and type of product released, 2009-2019
No release of product Release of hydrocarbon gas Release of HVP hydrocarbons Release of LVP hydrocarbons1 Release of other product
Province or territory 2009-2018
average
  2019 2009-2018
average
  2019 2009-2018
average
  2019 2009-2018
average
  2019 2009-2018
average
  2019
Newfoundland and Labrador 0.0   0 0.0   0 0.0   0 0.0   0 0.0   0
Prince Edward Island 0.0   0 0.0   0 0.0   0 0.0   0 0.0   0
Nova Scotia 0.1   0 1.6   0 0.0   0 0.0   0 0.1   0
New Brunswick 0.0   0 7.8   0 0.0   0 0.0   0 0.3   0
Quebec 2.4   2 0.4   2 0.0   0 0.5   0 0.0   0
Ontario 7.7   4 7.4   2 0.4   0 2.6   0 0.7   0
Manitoba 1.3   1 1.6   0 0.6   0 4.4   1 0.4   0
Saskatchewan 1.9   1 2.8   1 1.9   0 12.8   0 0.5   0
Alberta 13.8   10 14.8   6 0.8   0 10.5   3 0.3   0
British Columbia 8.2   8 10.7   4 0.5   0 0.8   0 7.4   0
Yukon 0.0   0 0.0   0 0.0   0 0.0   0 0.0   0
Northwest Territories 0.4   2 0.1   1 0.4   0 2.4   0 0.7   0
Nunavut 0.0   0 0.0   0 0.0   0 0.0   0 0.0   0
Total Occurrences 35.8   28 47.2   16 4.6   0 34.0   4 10.4   0

Data extracted 19 February 2020

Notes:

  1. As of July 2014, the minimum reporting threshold for releases of low vapour pressure hydrocarbons was established at 1.5 m³.

Definitions

Before 1 July 2014

Before 1 July 2014 (under the previous TSB Regulations), pipeline transportation accidents and incidents were defined as follows:

Pipeline accidents

Reportable commodity pipeline accident means an accident resulting directly from the operation of a commodity pipeline, where

  1. a person sustains a serious injury or is killed as a result of being exposed to
    1. a fire, ignition or explosion, or
    2. a commodity released from the commodity pipeline, or
  2. the commodity pipeline
    1. sustains damage affecting the safe operation of the commodity pipeline as a result of being contacted by another object or as a result of a disturbance of its supporting environment,
    2. causes or sustains an explosion, or a fire or ignition that is not associated with normal operating circumstances, or
    3. sustains damage resulting in the release of any commodity.

Pipeline incidents

Reportable commodity pipeline incident means an incident resulting directly from the operation of a commodity pipeline, where

  1. an uncontained and uncontrolled release of a commodity occurs,
  2. the commodity pipeline is operated beyond design limits,
  3. the commodity pipeline causes an obstruction to a ship or to a surface vehicle owing to a disturbance of its supporting environment,
  4. any abnormality reduces the structural integrity of the commodity pipeline below design limits,
  5. any activity in the immediate vicinity of the commodity pipeline poses a threat to the structural integrity of the commodity pipeline, or
  6. the commodity pipeline, or a portion thereof, sustains a precautionary or emergency shut-down for reasons that relate to or create a hazard to the safe transportation of a commodity;

Since 1 July 2014

On 1 July 2014, new reporting provisions of the TSB Regulations came into effect; additional clarifications came into effect on 1 January 2019 with respect to these regulations. According to section 4(1) of the TSB Regulations, the operator of a pipeline must report the following pipeline occurrences to the Board if they result directly from the operation of the pipeline:

4 (1) The operator of a pipeline must report the following pipeline occurrences to the Board if they result directly from the operation of the pipeline:

  1. a person is killed or sustains a serious injury;
  2. the safe operation of the pipeline is affected by
    1. damage sustained when another object came into contact with it, or
    2. a fire or explosion or an ignition that is not associated with normal pipeline operations;
  3. an event or an operational malfunction results in
    1. an unintended or uncontrolled release of gas,
    2. an unintended or uncontrolled release of HVP hydrocarbons,
    3. an unintended or uncontained release of LVP hydrocarbons in excess of 1.5 m³, or
    4. an unintended or uncontrolled release of a commodity other than gas, HVP hydrocarbons or LVP hydrocarbons;
  4. there is a release of a commodity from the line pipe body;
  5. the pipeline is operated beyond design limits or any operating restrictions imposed by the Canada Energy Regulator;
  6. the pipeline restricts the safe operation of any mode of transportation;
  7. an unauthorized third party activity within the safety zone poses a threat to the safe operation of the pipeline;
  8. a geotechnical, hydraulic or environmental activity poses a threat to the safe operation of the pipeline;
  9. the operation of a portion of the pipeline is interrupted as a result of a situation or condition that poses a threat to any person, property or the environment; or
  10. an unintended fire or explosion has occurred that poses a threat to any person, property or the environment.

Pipeline accidents

A pipeline accident is an occurrence resulting directly from the operation of a pipeline that results in:

  1. a loss of human life or a serious injury;
  2. a rupture; (i.e., an instantaneous release that immediately impacts the operation of a pipeline segment such that the pressure of the segment cannot be maintained)
  3. a fire, ignition or explosion that poses a threat to the safety of any person, property or the environment;
  4. an unintended or uncontained release of commodity that results in a significant adverse effect on people or the environment; (i.e. a release of any chemical or physical substance at a concentration or volume sufficient to cause an irreversible, long-term, or continuous change to the ambient environment in a manner that causes harm to human life, wildlife, or vegetation)

Pipeline Incidents

A pipeline incident is:

  1. an occurrence in which:
    1. the pipeline sustains damage that affects the safe operation of the pipeline as a result of another object coming into contact with it;
    2. an unauthorized third party activity affects the structural integrity of the pipeline;
    3. a geotechnical, hydrotechnical or environmental activity poses a threat to the safe operation of the pipeline.
  2. an occurrence resulting directly from the operation of a pipeline in which:
    1. there is a fire, ignition or explosion that affects the safe operation of the pipeline;
    2. there is an occurrence that results in
      1. an unintended or uncontrolled release of hydrocarbon gas,
      2. an unintended or uncontrolled release of HVP hydrocarbons,
      3. an unintended or uncontrolled release of LVP hydrocarbons in excess of 1.5 m³, or
      4. an unintended or uncontrolled release of a commodity other than hydrocarbon gas, HVP hydrocarbons or LVP hydrocarbons;
    3. there is a release of a commodity from the line pipe body;
    4. the pipeline is operated beyond design limits or any operating restrictions imposed by the Canada Energy Regulator;
    5. the pipeline restricts the safe operation of any mode of transportation.
