Marine Investigation Report M13M0102
Grounding and subsequent sinking
Small fishing vessel Marie J
Tabusintac Bay, New Brunswick
The Transportation Safety Board of Canada (TSB) investigated this occurrence for the purpose of advancing transportation safety. It is not the function of the Board to assign fault or determine civil or criminal liability. This report is not created for use in the context of legal, disciplinary or other proceedings. See Ownership and use of content.
On 18 May 2013, at approximately 0530 Atlantic Daylight Time, the small lobster fishing vessel Marie J grounded on a sandbar while returning to McEachern's Point harbour in Tabusintac Bay, New Brunswick, in bad weather. The vessel remained awash on the sandbar for approximately 20 minutes before it was pushed over the sandbar into deeper water by breaking waves and subsequently sank. The 3 persons on board drowned.
Le present rapport existe également en français.
Particulars of the vessel
|Name of vessel||Marie J|
|Official/Licence number||809350/VRN 151414|
|Port of registry||Moncton, New Brunswick|
|LengthFootnote 1||11.52 m|
|Built||1987: Alberton, Prince Edward Island|
|Propulsion||1 diesel engine (149 kW) driving a single fixed-pitch propeller|
|Cargo||Approximately 200 kg of lobster bait|
|Registered owner||Private owner (New Brunswick)|

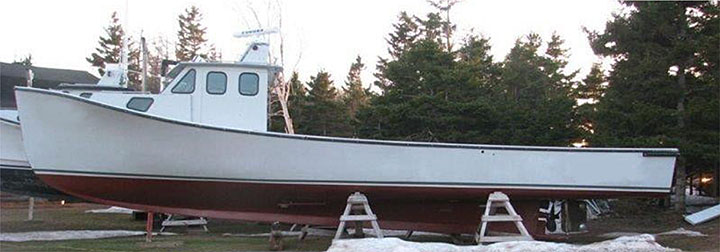

Description of the vessel
The Marie J was a Northumberland-style fishing vessel used for lobster fishing (Photo 1). The wheelhouse and accommodation were located forward, and the engine compartment was situated beneath a working deck. The wheelhouse could be accessed through a door on the starboard side, and the engine compartment could be accessed through a hatch on the working deck.
The vessel's hull was constructed of fiberglass and was subdivided by 4 transverse bulkheads that enclosed, from forward, a void space, the crew accommodations, the engine room, and a lazarette. The engine room bilge was fitted with an automatically activated submersible bilge pump and a remotely activated engine-driven pump. The wheelhouse was equipped with navigation and electronic equipment, including a very high frequency (VHF) radiotelephone with digital selective calling capability, a radar, a chart plotter, a global positioning system (GPS), and an echo sounder.
The master had leased the Marie J on 08 May 2013, after his previous vessel had been destroyed by a fire at McEachern's Point harbour. The Marie J differed from his previous vessel, mainly in the increased weight of the hull and decreased visibility from the wheelhouse. The master had operated the Marie J for approximately 10 fishing days prior to this occurrence.
Description of Tabusintac Bay
Tabusintac Bay, located at the mouth of Tabusintac River, is fronted by a 14-km stretch of sandbars that contain numerous tidal gullies (Appendix A). A route within a gully that allows vessels to pass through to the open sea is in a constant state of flux as a result of predominant wind and wave action from the north/northeast. These winds, waves and tidal action, as well as winter ice thickness, also affect the structure of the stretch of sandbars, causing existing gullies to gradually or suddenly silt in and new gullies to open up in different locations. This flux makes it difficult to represent these changes on Canadian Hydrographic Services (CHS) charts. The tidal range is moderate, with less than a 1.5-m difference between high and low tides, but the tide may run at 6 to 7 knots.Footnote 2
Approximately 45 fishing vessels operate out of McEachern's Point harbour. For about 30 years, the fishermen accessed the open sea by a tidal gully 5 km south of the harbour, through a channelFootnote 3 marked by Canadian Coast Guard Aids to Navigation (CCG NavAids). In the spring of 2012, CCG NavAids buoyed the route, as was customary on an annual basis. However, the fishermen were using a different route at that time, through a gully that had newly formed 3.9 km north of the original south (old) gully, closer to the harbour. Their route was privately marked by a single line of orange fishing buoys and was based on their own soundings.
Over the winter of 2012–2013, the buoyed channel in the old gully and the privately marked route in the north gully completely silted in. During the same winter, a new gully opened up 300 m to the southwest of the silted-in north gully with the privately marked route. In the spring of 2013, CCG NavAids approved the placement of buoys to mark a route in the new gully (Appendix B). To mark the best-depthFootnote 4 route, a single row of red starboard-hand buoys was placed on the leading edge of the shallow water on the northeast side of the channel, while a single green port-hand buoy was placed on the southwest side. At its narrowest point, this channel was less than 30 m wide, with minimum depths of 0.5 mFootnote 5 below chart datumFootnote 6 in some places. Although this was the only navigable channel currently available, the new gulley was also perpendicular to predominant wind and wave action, and thus was subject to silting/bottom-shifting similar to the old and north gullies. Having used those gullies over the previous fishing seasons, the local fishermen were familiar with the silting/bottom-shifting within this gully. They were aware as well of the possibility that, because of the silting/shifting and the shifting positions of the buoys, the buoys may not accurately mark the best-depth route, leading to the common occurrence of bottom contact. They had determined through experience that the preferred track along this route was to make a tight turn around the red seaward buoy and then navigate as close as possible to the red buoys.
History of the voyage
On 18 May, at approximately 0440,Footnote 7 the Marie J, along with 18 other lobster fishing vessels, departed McEachern's Point harbour to check the weather conditions and suitability for fishing outside of the bay.Footnote 8,Footnote 9 The master, a deckhand, and a third person who was not a crew member were on board. The vessels transited the buoyed channel (Appendix B) and exited into the Gulf of St. Lawrence, where the fishermen decided that the weather and sea conditions were not conducive to fishing. The vessels then began to return to the harbour via the same channel. At this time, it was just past low tide; the northeast winds were at approximately 25 knots, and waves of 3 to 4 m from the northeast were breaking across the area at the entrance to the channel. At approximately 0505, the Marie J, along with 3 other vessels, approached the entrance to the channel in single file. The first vessel entered the channel at approximately 0515 and successfully crossed past the sandbars. At 0520, the second vessel also made a successful transit, although this vessel did make contact with the bottom on the southwest side of the channel.
At approximately 0525, the Marie J was observed to have approached the channel entrance in a similar manner to that of the first 2 vessels, passed with a wider turn around the seaward red buoy, and then reduced speed to coordinate the timing of the vessel's entry into the channel with a lull in the waves. Moments later, as the Marie J increased speed to enter the channel, a wave came over a sandbar on the northeast side and struck the vessel broadside. A second wave, which followed shortly after, set the vessel to port and onto an unmarked, submerged sandbar on the southwest side of the channel. Both breaking waves shipped water onto the vessel's working deck, causing it to lean to port once awash on the sandbar.
The master on another lobster fishing vessel called the 9-1-1 centre in Miramichi and reported that the Marie J was sinking, and that 3 people were on board. The message was relayed to the Joint Rescue Coordination Centre (JRCC) in Halifax, Nova Scotia. JRCC Halifax provided Sydney Marine Communications and Traffic Services (MCTS) with an initial rough position marking the centre of Tabusintac Bay. (JRCC Halifax used electronic raster chartsFootnote 10 to determine this position.) At 0536, a mayday broadcast was issued by MCTS in Sydney, Nova Scotia, that identified a vessel sinking in the Tabusintac gully area. Ten minutes later, MCTS reported that there had been no response to the mayday.
Meanwhile, the breaking waves continued to set the Marie J further onto the sandbar. The other fishing vessels made several attempts to reach the Marie J, but these attempts were prevented by the breaking waves and shallow water.
At 0541 and again at 0550, the CCG cutter from Shippagan, New Brunswick, was paged, and was then tasked at 0554. At approximately 0542, the JRCC tasked the Department of National Defence (DND) helicopter from Greenwood, Nova Scotia. At approximately 0543, two of the persons on board the Marie J were observed to be standing on the starboard side bulwark and holding onto the wheelhouse. The waves continued to break against the vessel for about 10 more minutes, at which time the Marie J was pushed over the sandbar and out of the sight of the other vessels.
At 0612, MCTS issued a mayday that provided a second updated position, following a report to JRCC from a fisherman on site that described the vessel's position as being between buoys TA-4 and TA-12. JRCC determined this second position by the location of buoy TA-2, using a combination of CHS charts, and established the location to be in the entrance of the old buoyed channel in Tabusintac Bay.
Using the position of floating objects reported at 0647 and the position of the buoyed channel indicated on CHS charts,Footnote 11 it appeared to JRCC that the drift pattern was to the north.
At 0739, the position of the overturned hull was reported to JRCC by a searcher on the beach that provided GPS coordinates.
At 0745, en route from the north, the CCG cutter Cap Breton passed the fishing vessels assisting in the search, and arrived in the vicinity of the vessel's overturned hull. At the same time, the DND helicopter was tasked to the third updated position by JRCC via MCTS, and arrived on scene at 0759. The search boundaries for the helicopter were centred around the third updated position, 2 km northeast of the mouth of the old buoyed channel, as marked on CHS charts.
At 0749, MCTS issued a mayday that provided a third updated position, after having received a report of the latitude and longitude from a searcher with a GPS where the vessel's overturned hull was located. This position was approximately 1.5 km southwest of the actual occurrence location.
At 0756, the Department of Fisheries and Oceans (DFO) Fast Rescue Craft (FRC) arrived from Neguac, New Brunswick, and searched an area where an object in the water was located (south of the old buoyed channel).
At 0758, MCTS relayed a message from JRCC to the Cap Breton to search along the coast, north of the buoyed channel. The Cap Breton complied by turning around and travelling north, away from the accident site and overturned hull and in the opposite direction of the actual drift pattern.
One body was recovered in the afternoon, and the other 2 bodies were recovered the following day.
Damage to the vessel
The Marie J sank and was not recovered, with the exception of the wheelhouse, which was later located on the beach.
Personnel certification and experience
The master had 18 years of fishing experience in the Tabusintac Bay area and had served as a master for the last 8 years. In 2001, he completed marine emergency duties (A1) training and, in 2011, completed small-vessel operator proficiency training.
The experienced deckhand and the third person on board held no marine certifications.
The buoy contractor had 52 years of fishing experience and had been surveying the gullies and placing the buoys in Tabusintac Bay since 1964. He had held the buoy tending contract for the last 37 years.
At the time of the occurrence, a strong north wind warning was in effect. The wind was from the northeast at approximately 25 knots, and the wave height was 3 to 4 m. The current was flooding into Tabusintac Bay and was opposing the wind and sea conditions in the Gulf of St. Lawrence. The DFO prediction for low tide on 18 May in the Tabusintac gully was 0430.
Under the Small Fishing Vessel Inspection Regulations, the Marie J, as a vessel not exceeding 12.2 m in length, was required to carry the following lifesaving appliances:
- 1 approved life jacket for each person on board
- 1 approved lifebuoy fitted with 27 m of retrieval line
- 1 watertight can containing 6 approved self-igniting flares.
The vessel was equipped with 3 lifejackets, 1 fire extinguisher, 6 flares, and 3 personal flotation devices (PFDs). There was no life raft or emergency position-indicating radio beacon (EPIRB) on board, and they were not required by regulation.
None of the 3 persons on board the Marie J were wearing lifesaving appliances at the time of the occurrence. As well, within the fishing community of Tabusintac, it was not common practice for fishermen to wear PFDs or carry additional lifesaving equipment beyond that required to be carried by regulation.
Search and rescue
In the case of an emergency, the CCG is responsible for conducting, coordinating, and controlling maritime search and rescue (SAR) operations in Canadian waters. This work is conducted through the JRCCs and Maritime Rescue Sub-Centres (MRSCs). MCTSFootnote 12 centres assist JRCCs and MRSCs by managing communications with the vessels in need of assistance and with those involved in the SAR response. MCTS also collects information necessary for the successful resolution of a case and relays it to the rescue centre.
JRCC Halifax is the rescue coordination centre for Tabusintac Bay. The JRCC Halifax watch officers (maritime SAR coordinators) collect positions from a variety of sources, including 9-1-1 centres, MCTS, vessels in need of assistance, and vessels involved in the SAR response. The maritime SAR coordinator uses the best means, procedure, or method available at the time for collecting the occurrence position.
Management of Tabusintac Bay
CCG NavAids and the DFO's Small Craft Harbours (SCH) program are the 2 principal entities involved in managing the navigational aspects of Tabusintac Bay. CCG NavAids oversees the placement of aids to navigation to mark a channel, and is responsible for communicating changes about these aids, while SCH oversees the regulatory and administrative control of the harbour, as well as operations and maintenance.
In order to identify and maintain a navigable channel into Tabusintac Bay, CCG NavAids contracts a private buoy contractor each spring, as soon as the weather and ice cover allows. The contractor performs initial soundings to identify the best-depth route for navigation. Once a best-depth route is identified, the buoy contractor obtains an initial sounding of its existing depths and width. SCH then arranges for a dredging needs survey to be carried out, and contracts dredging as needed. Ideally, the route is dredged before it is marked with aids to navigation; however, for various reasons,Footnote 13 dredging often does not occur before the channel is marked. In the spring of 2013, SCH had contracted dredging services for the new gully.
Short-range aids to navigation systems
Short-range aids to navigation systems, such as buoys, are used in a variety of situations, such as within harbours that predominantly serve commercial fishermen. The aids are provided and installed by CCG NavAids in accordance with the Procedures Manual for Design and Review of Marine Short-Range Aids to Navigation Systems (TP 9677).
TP 9677 was developed in 1989 to provide operational and technical procedures to give effect to 2 CCG Navaids directives.Footnote 14 These 2 directives detail the responsibilities and procedural aspects to be followed in the design of a short-range navigational system, as well as the type and frequency of reviews to be conducted. One of the directives specifies the 3 types of reviews for short-range navigation systems. They consist of the following:
- Standard reviews, whereby 4 types of analyses (site, needs, operational, and cost effectiveness), as prescribed by procedures manual TP 9677, are evaluated to design a new system of aids to navigation and shall be used when a system has never been evaluated under the procedures manual;
- Cyclical reviews, by which an initially designed system of aids to navigation is reviewed every 5 years to ensure its continued relevance; and
- Ad-hoc reviews, a process involving review of an aid system or parts of a system based on requests or new information that could affect the configuration of an existing aid system. This type of review can be triggered by:
- the elapse of 5 years since the previous cyclical review
- the occurrence of a serious incident (damages, injuries, complaint)
- a request for a new system, modifications to an existing system, changes in traffic, activities, or threats
- technological advances or operational changes to CCG resources
- major maintenance or replacement of assets
- a change in the level of service
- a marine aids system where an initial review has never been performed.
When CCG NavAids receives a request for short-range aids to navigation at a new site or decides to review an existing site, its procedure is to forward the request to the superintendent of NavAids as well as the CCG NavAids design and review specialists. The design and review specialists investigate the site to identify hazards and determine vessel routes, specifications of vessels that will use the channel,Footnote 15 weather conditions, and sea conditions. CCG NavAids also considers information from harbour authorities (users) and from buoy contractors, and any other site information, such as groundings, to make a decision in the best interests of the mariner.
The design and review specialists calculate the minimum depth allowance that will determine physical threats that the vessel cannot pass over safely. Where there are insufficient depths at chart datum but sufficient depth at high tide, the harbour is reviewed as tidal assist,Footnote 16 and a best-depth route is chosen that would enable a vessel to pass through to the open sea.Footnote 17
On 25 April, CCG NavAids received a request from the Tabusintac Bay buoy contractor to move the buoys from the old channel in the previous gully (that was silted in) to the gully that had opened up over the winter. Initial soundings done by the buoy contractor indicated that there was no other route out of Tabusintac Bay with sufficient water depth. The request to mark a new route was not forwarded to the design and review specialists. A day later, CCG NavAids provided approval for the buoy contractor to mark the best-depth route with the initial soundings and with the aid of a sounding pole. On 26 April, a single line of 9 red starboard-hand buoys, 3 of which were lit, and 1 lit green port-hand buoy were placed to indicate the new channel. Although, at the time of the occurrence, CCG NavAids was aware of the placement of the buoys in the new gully, it had not received the buoy service report from the contractor and did not know their exact position.
Once aids to navigation have been placed, CCG NavAids is responsible for issuing a Notice to Shipping (NOTSHIP) to mariners and, if necessary, preparing a Notice to Mariners (NOTMAR) in conjunction with CHS.Footnote 18 The process of applying changes to a chart takes approximately 4 months after the information is available. In situations where the navigational aid is not charted, a NOTSHIP is not required. However, when lit buoys (charted or uncharted) or any other charted buoys are relocated, production of a NOTSHIP and NOTMAR is required. No NOTSHIP or NOTMAR was issued to indicate that the buoys had been moved to a different channel until a NOTSHIP of 25 June 2013, which indicated that the buoys were unreliable in the new dredged channel. The latest update of CHS charts, which were published in July 2014, still depicted the previously buoyed channel in the old gully and included the annotation “Channel Buoyed.”Footnote 19
The CCG NavAids design and review specialists performed an ad hoc review, instead of a standard review, of the aids to navigation in Tabusintac Bay on 25 June 2013. The review determined that buoys placed on both sides of the channel were required for the new channel, because the channel width is less than 30.5 m. Following this review, 5 additional green buoys were added to the channel.
As of April 2014, of the 434 channels in the Atlantic region, 364, or 84%, have been reviewed. An initial review, as prescribed by TP 9677, has been conducted on those 364 channels, while the other 70 have not had any type of review performed.
In a letter to the Transportation Safety Board (TSB) dated July 2014, CCG indicated that it is “working to modernize its risk-based methodology to design and review Aids to Navigation Systems. This methodology allows CCG to identify and assess the levels of risk in navigable waterways and ascertain the appropriate combination of aids to mitigate those risks.”Footnote 20
Safety Issues Investigation into Fishing Safety in Canada
In August 2009, the TSB undertook an in-depth safety issues investigation (SII) into fishing vessel safety in Canada. The resulting report, Safety Issues Investigation into Fishing Safety in Canada, released in June 2012, provides an overall, national view of safety issues in the fishing industry, and reveals complex relationships and interdependencies among these issues. The Board identified the following significant safety issues requiring attention: stability, fisheries resource management (FRM), lifesaving appliances, training, safety information, cost of safety, safe work practices, regulatory approach to safety, fatigue, and fishing industry statistics.Footnote 21
Provincial oversight of fishing safety
The SII examined the various governance structures in place at the provincial level that provide oversight of safety in the fishing industry. In Canada, the jurisdiction of the provinces to regulate certain aspects of the commercial fishery, including those related to labour relations, workplace safety, and workers. compensation, has been recognized by federal and provincial courts. There have been several cases across Canada in which the courts have ruled that the provinces have jurisdiction over certain aspects of fishing safety. However, provincial legislation varies with respect to these issues, with some provinces taking a more proactive and comprehensive approach than others.
For example, provincial oversight of workplace safety in the fishing industry differs significantly between the neighbouring provinces of New Brunswick and Nova Scotia.Footnote 22 In Nova Scotia, the provincial Department of Labour regulates certain aspects of fishing, including those related to labour relations and workplace safety. In contrast, New Brunswick's Occupational Health and Safety Act excludes fishing vessels from its definition of “place of employment.” As such, WorksafeNB does not have jurisdiction to inspect fishing vessels and enforce WorksafeNB regulations.
Another difference between these 2 provinces exists with respect to the role of workers. compensation boards in promoting safety within the fishing industry. In Nova Scotia, the Workers. Compensation Board of Nova Scotia (WCBNS) actively supports an industry-led safety association model and, along with the Nova Scotia Fisheries Sector Council,developed and supported the Fisheries Safety Association of Nova Scotia (FSANS) in 2010. The mandate of FSANS is to enhance safety through education in prevention, and through research, advocacy, communication, and increased awareness. In contrast, due to its lack of legislated authority, the workers. compensation board in New Brunswick is not involved in matters related to fishing safety.Footnote 23
The Nova Scotia Fisheries Sector Council (NSFSC) is also working to educate fishermen on training and certification requirements, and is developing tools and a coordinated approach to help fishermen meet these requirements. The council has advisory members from DFO, the Nova Scotia Department of Fisheries and Aquaculture, and the Department of Labour and Advanced Education, as well as the Nova Scotia School of Fisheries. This council also coordinates the Scotia-Fundy Professional Fishermen's Training and Registration Association (SFPFTRA) Network Coordinator outreach program, which promotes and strengthens a training culture amongst fishermen. The association has 6 regional coordinators, who provide safety tools and information on training, certification, and safety at sea.
Past occurrences investigated by the TSB have raised similar safety issues as those identified with the Marie J. The Board recommendations that follow here were made in response to these past occurrences, and responses to them have not yet been assessed as Fully Satisfactory.
In 1992, following an accident involving the Straits Pride II (TSB Marine Investigation Report M90N5017), the Board noted the perennially high risk of fishermen being in a survival situation in extremely hostile waters, and recommended that
The Department of Transport expedite its revision of the Small Fishing Vessel Safety Regulations, which will require the carriage of anti-exposure worksuits or survival suits by fishermen.
TSB Recommendation M92-07
While Transport Canada (TC) has proposed changes to the existing regulations pertaining to fishing vesselsto require the carriage of immersion suits and/or anti-exposure worksuits on certain fishing vessels,the publication of the new regulations has been delayed multiple times over the last 22 years. The proposed changes would require fishing vessels of 12 m or more in length operating less than 25 nautical miles (nm) from shore (Near Coastal Voyage Class 2) to carry anti-exposure worksuits and immersion suits when the water temperature is less than 15°C. Fishing vessels of less than 12 m that opt to carry an EPIRB or a means of 2-way communication rather than a life raft or other survival craft would also be required to carry immersion or anti-exposure worksuits if the water temperature is less than 15°C. This proposed regulation would apply to fishing vessels such as the Marie J.
The new proposed period for pre-publication of the Fishing Vessel Safety Regulations is targeted as the fall of 2014. The proposed requirement to carry immersion suits or anti-exposure worksuits, when fully implemented, may reduce the risks associated with cold water immersion. The Board's assessment of the response remains Satisfactory Intent.
In 2000, following an accident involving the fishing vessel Brier Mist (TSB Marine Investigation Report M98L0149), the Board recommended that
The Department of Transport require small fishing vessels engaging in coastal voyages to carry an emergency position indicating radio beacon or other appropriate equipment that floats free, automatically activates, alerts the search and rescue system, and provides position updates and homing-in capabilities.
TSB Recommendation M00-99
In 2002, TC phased in EPIRB carriage requirements for all vessels of 8 m or more in length operating beyond the limits of home-trade voyage, Class III (20 nm). TC has proposed further EPIRB carriage requirements in the Fishing Vessel Safety Regulations, but they have yet to be published. The proposed changeswould extend the requirement to carry an EPIRB on fishing vessels of 12 m or more in length operating less than 25 nm from shore (Near Coastal Voyage Class 2). Fishing vessels of less than 12 mwould have theoption of carrying a 406-megahertz (MHz) EPIRB, or a means of 2-way communication, in lieu of a life raft or other survival craft. However, in opting to carry the EPIRB or a means of 2-way communication, the vessel would also have to carry immersion or anti-exposure worksuits of an appropriate size for each person on board if the water temperature is less than 15°C.
Given the lower costs of purchasing, maintaining, and fitting an EPIRB and of having anti-exposure worksuits instead of a life raft, operators may opt for the least expensive option and forego carrying a life raft or other survival craft. Once TC's proposed regulations are in force, they will extend the requirements to carry EPIRBs to smaller fishing vessels in a much larger geographic area, and the risks associated with not carrying an EPIRB will be substantially reduced. Therefore, the Board's assessment of the response remains Satisfactory Intent.
In October 2012, the passenger vessel Jiimaan grounded while navigating around a private port-hand buoy that was used to mark a sandbar in the approaches to the ferry terminal in Kingsville, Ontario (TSB Marine Investigation Report M12C0058). In the Jiimaan occurrence, the responsibilities for safety-critical activities were divided among more than one entity in the port of Kingsville. Although harbour users were aware of the extent of silting and aware of the private buoy used to mark the sandbar, it was found that this information had not been communicated among them. As a consequence, the approach to the Kingsville harbour as it was depicted on Chart 2181 and in the Sailing Directions did not reflect the actual conditions. In the Marie J occurrence, the specific location of the new buoyed channel was not communicated to CHS and, therefore, was not depicted on any CHS chart. However, in both cases, the vessel masters were aware of the local conditions and of the practices required to navigate these areas.
Events leading to the grounding
While returning from the fishing grounds in adverse weather conditions, the Marie J attempted to enter the only available channel leading into McEachern's Point harbour. This channel posed a number of challenges to navigation: it was narrow, shallow, perpendicular to the direction of the wind and waves, and subject to strong tides. Furthermore, on the day of the occurrence, the accuracy of the buoy locations was unknown; the channel was prone to silting and bottom shifting, the buoys themselves could shift in position, and it was near low tide, with breaking waves from the northeast.
In this occurrence, although the practice of fishermen was to make a tight turn around the first red seaward starboard-hand buoy, the master made a wider turn around the buoy. After making the turn, the Marie J was positioned further southwest of the red starboard-hand buoys, putting the vessel in proximity to a sandbar. Although the investigation could not determine conclusively why the wider turn was made, it is possible that
- the master had a limited visibility of the red buoys (either due to the configuration of the vessel's wheelhouse or because the breaking waves were obscuring the buoys);
- the master may have been unfamiliar with the vessel's handling characteristics, since he had only recently leased it; or
- the wind, waves, and cross tides on this particular day may have also contributed to the Marie J's position.
After the turn, the Marie J's position in the channel was such that 2 successive breaking waves from the northeast set the vessel to port onto the nearby sandbar and shipped water on deck. The vessel remained awash on the sandbar for approximately 20 minutes before it was pushed over the sandbar by the continuing waves into deeper water and sank. The 3 persons on board subsequently drowned.
Reviews of short-range aids to navigation systems
To ensure navigational safety, it is important that a review of a channel system is undertaken by Canadian Coast Guard Aids to Navigation (CCG NavAids) design and review specialists prior to the placement of aids to navigation at a new or existing site. This review provides an opportunity to detect and mitigate potential hazards, as well as to identify information about the site that may need to be communicated to mariners and other entities.
Of 434 channels in the Atlantic region, 70 have never been reviewed; however, they are being identified as priorities on yearly work plans.Footnote 24 The design and review specialists completed an ad hoc review of the Tabusintac channel approximately 2 months after the occurrence to determine the adequacy and best placement of the buoys. The review determined that 5 additional green port-hand buoys should be installed for increased navigational safety. The Aids to Navigation Directive 2.2600 indicates that a “standard review shall be utilized for a system that had never been evaluated under the procedures manual”;Footnote 25 however, this type of review was not performed. After the accident, an ad hoc review was conducted.
If short-range aids to navigation are placed in a channel without conducting a review, mariners may be exposed to unidentified hazards.
Communication of changes to short-range aids to navigation
To enable safe navigation, it is essential that changes to short-range aids to navigation are communicated to mariners and other entities, such as Canadian Hydrographic Services (CHS) and search and rescue (SAR) organizations, which rely on the accuracy of this information.
In the spring of 2013, the lit and unlit buoys were relocated from the old gully to the new route in the new gully. However, because CCG NavAids was unsure where the final location of the new channel would be after the dredging operation of the new gully, scheduled to take place in May 2013, neither a Notice to Shipping (NOTSHIP) nor a Notice to Mariners (NOTMAR) was issued to indicate this change. Without NOTSHIPs or NOTMARs, SAR organizations did not have the information necessary to make corrections to their charts for the Tabusintac Bay area, nor did CHS have the information necessary to update the location of the channel on the chart for the area.
In September 2013, a NOTSHIP was issued that contained the new positions of 2 lit buoys; however, no NOTMAR was issued. Without a NOTMAR, CHS did not have information about the new position of the 2 lit buoys and could not apply changes to the chart. On the latest (July 2014) version of the chart for Tabusintac Bay, the gulley in Tabusintac and the annotation “Channel Buoyed” are still depicted in the old gulley position.
At the onset of the SAR operation, the occurrence location was provided in relation to the buoy system in the Tabusintac gully. The Joint Rescue Coordination Centre (JRCC) believed that the position of the sinking was in the Tabusintac gully as it was depicted on CHS charts, which still depicted the buoyed channel as being in the old gully. However, the Halifax JRCC was unaware that the depiction did not reflect the actual location of the North buoyed channel. The coordinates that were provided to the search resources was just outside of the old gully, rather than in the new gully.
The inaccurate presumed position of the occurrence, in combination with the reported position of the overturned hull, led SAR coordinators to estimate a northerly drift pattern for the Marie J and persons in the water. This estimation meant that the SAR resources started searching in an area 3.9 km south of the actual site of the occurrence in a northerly direction. Despite the inaccurate determination of the accident location and the appearance of a northward drift pattern, some of the SAR resources ultimately travelled and searched in the location of the actual occurrence.
Although it is unlikely that the inaccuracy of the original reported position of the vessel affected the final outcome of this particular SAR operation, knowledge of the precise location of a vessel in an emergency is often critical to the outcome of a successful SAR operation.
If information about changes to short-range aids to navigation is not communicated, there is a risk that SAR operations may be compromised.
Lifesaving appliances are essential tools that increase the chances of surviving an emergency at sea. Among fishermen, the carriage and use of lifesaving appliances is influenced by their attitudes toward and knowledge of safety on board a vessel, as well as by factors such as training, work practices, regulations, the availability of safety information, and cost.
The vessel was fitted with the required minimum of lifesaving appliances, including lifejackets. It was not fitted with any additional lifesaving appliances. In this occurrence, the 3 persons on board were not wearing personal flotation devices (PFDs) or lifejackets. The master had learned his trade locally within the Tabusintac fishing community, where it was common practice for fishermen not to wear PFDs and to carry only the lifesaving appliances necessary for regulatory compliance.
If lifesaving appliances are not used, there is increased risk of injury or death to crew members during an emergency.
Safety issues in the fishing industry
The Transportation Safety Board (TSB) safety issues investigation (SII) report, Safety Issues Investigation into Fishing Safety in Canada, categorized actions that affect safety into 10 significant safety issues, and found that there are complex relationships and interdependencies among them. These safety-significant issues are further analyzed in the SII.Footnote 26 As shown below, practices and procedures relating to 5 of the safety-significant issues identified in the SII are evident in this occurrence.
Fisheries resource management
|Safety issues investigation findings||Relationship to this occurrence|
|Fishermen compete for their share of the resource, which may encourage risk-taking activities such as overloading vessels, working while fatigued, and operating in poor weather.||Given the limited open period of the lobster fishery, the Marie J travelled to and attempted to return from the fishing grounds in poor weather conditions.|
|Safety issues investigation findings||Relationship to this occurrence|
|Fishermen may fit their vessels with lifesaving appliances (LSAs) only for regulatory compliance.||The investigation determined that the Marie J was not fitted with any additional lifesaving equipment other than that which was required, and few other fishing vessels at McEachern's Point harbour were.|
|Fishermen resist wearing PFDs because many have accepted the risk.||It was not common practice in the Tabusintac Bay fishing community to carry or wear PFDs, and the crew on board the Marie J were not wearing PFDs.|
|Not all fishing vessels carry an emergency position-indicating radio beacon (EPIRB), despite TSB Recommendation M00-09.||The Marie J was not fitted with an EPIRB,and one was not required by regulation.|
|Not all fishing vessels carry suitable immersion suits for the complement, despite TSB Recommendation M92-07.||There were no immersion suits on board the Marie J, and none were required to be carried by regulation.|
Regulatory approach to safety
|Safety issues investigation findings||Relationship to this occurrence|
|Some provinces have workers. compensation board policies that apply specifically to fishermen.||New Brunswick's WorksafeNB Occupational Health and Safety Act excludes fishing vessels as places of employment, and is not involved in matters related to fishing safety.|
|Safety issues investigation findings||Relationship to this occurrence|
|Fishermen assess and manage risk based on experience.||The local experience was that vessels frequently touched bottom when navigating in the gully.|
Safe work practices
|Safety issues investigation findings||Relationship to this occurrence|
|Fishermen learn and reinforce their operating practices based on experience and exchanges with peers.||Few fishermen in the community wore PFDs or carried lifesaving equipment beyond the required minimum, including those operating the Marie J.|
Interdependency of safety issues
In this occurrence, as demonstrated in the tables above, there were a number of interrelated unsafe conditions and safety issues. Within the fishing industry, past attempts to address these safety issues on an issue-by-issue basis have not led to the intended result, which is a safer environment for fishermen. The SII emphasized that in order to obtain real and lasting improvement in fishing safety, change must address not just one of the safety issues involved in an accident, but all of them, recognizing that there is a complex relationship and interdependency among those issues. Removing a single unsafe condition may prevent an accident, but would only slightly reduce the risk of others. The safety of fishermen will be compromised until the complex relationship and interdependency among safety issues is recognized and addressed by the fishing community.
Provincial fishing safety oversight
The SII identified the need for provincial governments and leaders in the fishing community to work collaboratively to establish regional governance structures aimed at ensuring that fishermen can and do work safely.
Across Canada, there are currently some promising coordinated initiatives aimed at instilling safe work practices, such as the efforts in Nova Scotia, where organizations such as the Fisheries Safety Association of Nova Scotia and the Nova Scotia Fisheries Sector Council work in partnership with the fishing community to further safety. These coordinated efforts in Nova Scotia are helping fishermen to realize that safety is an integral part of fishing operations.
By comparison, initiatives in New Brunswick are limited. While provinces have legal jurisdiction to enforce workplace safety in the fishing industry, WorksafeNB lacks the required provincial legislation to do so, and therefore cannot enforce matters related to occupational health and safety on fishing vessels. Furthermore, there are no provincial-level fishing safety organizations working to promote safe work practices among fishermen in New Brunswick.
If there is no focused and concerted effort at the provincial level to promote fishing safety, then fishermen may not employ safe working practices.
Findings as to causes and contributing factors
- The Marie J made a wide turn around the first red buoy at the beginning of the channel, positioning the vessel closer to a sandbar.
- The accuracy of the locations of the buoys and the position of the sandbar could not be determined, as the tidal gully was prone to silting and bottom shifting.
- Two successive breaking waves struck the vessel, set it to port, and caused it to ground on the nearby sandbar.
- Waves continued to strike the vessel, pushing it over the sandbar where it sank, and the 3 persons on board drowned.
Findings as to risk
- If short-range aids to navigation are placed in a channel without conducting a review, mariners may be exposed to unidentified hazards.
- If information about changes to short-range aids to navigation is not communicated, there is a risk that search and rescue operations may be compromised.
- If lifesaving appliances are not used, there is increased risk of injury or death to crew members during an emergency.
- The safety of fishermen will be compromised until the complex relationship and interdependency among safety issues is recognized and addressed.
- If there is no focused and concerted effort at the provincial level to promote fishing safety, then fishermen may not employ safe working practices.
Safety action taken
On 25 June 2013, an ad hoc review was conducted by the design and review specialists of Canadian Coast Guard Aids to Navigation (CCG NavAids) using the Procedures Manual for Design and Review of Marine Short-Range Aids to Navigation, due to concerns over the placing of the buoys in the Tabusintac gully. The specialists were requested to provide accurate recommended positions for the placement of the buoys in the channel. As a result of the review, 5 green port-hand buoys were added to the channel.
On 31 July 2013, Public Works and Government Services Canada, on behalf of Fisheries and Oceans Canada, commissioned a coastal study to assess alternative strategies for improving navigational safety to access McEachern's Point harbour at Tabusintac Bay. The studyFootnote 27 identified the following options: continue to carry out adaptive dredging on a yearly basis, construct training walls at Brantville gully, construct training walls at the south channel of the new gully, or perform gully excavation and construct training walls north of the new gully. The study found that future environmental changes may cause additional breaches in the sandbars, decreasing tidal flow and increasing sedimentation, which would reduce the effectiveness of training walls.
This report concludes the Transportation Safety Board's investigation into this occurrence. The Board authorized the release of this report on . It was officially released on .

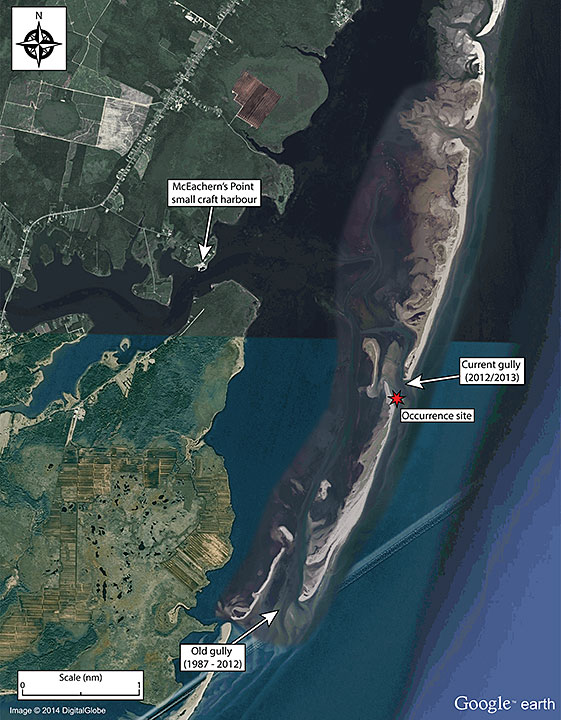

Appendix A – Tabusintac Bay
The configuration of gullies in Tabusintac Bay in the spring of 2013 (source: Google earth; overlay of gully configuration from the CBCL Limited draft report, Coastal Study for Harbour Access at Tabusintac Bay, New Brunswick [November 2013]).

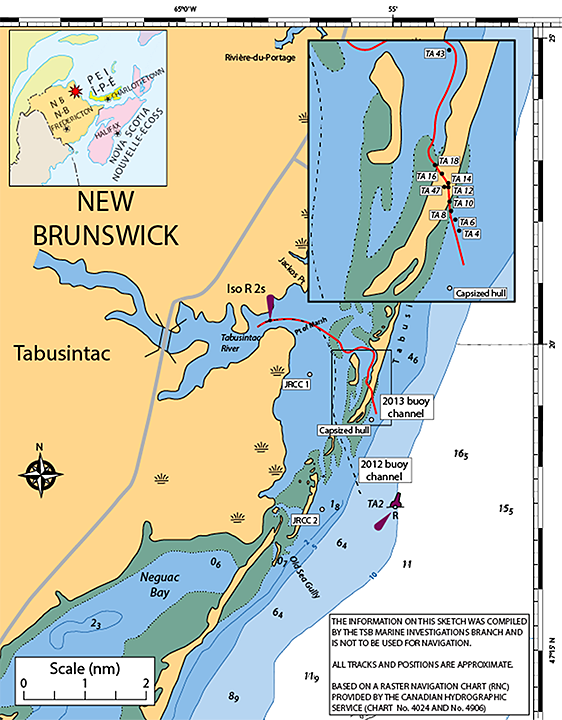

Appendix B – Tabusintac Bay
